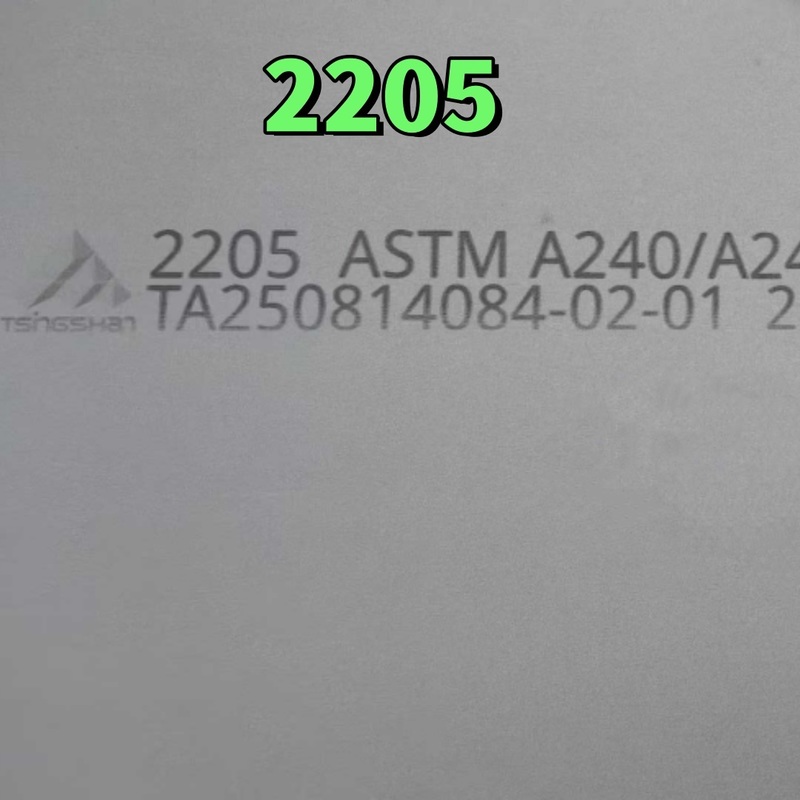

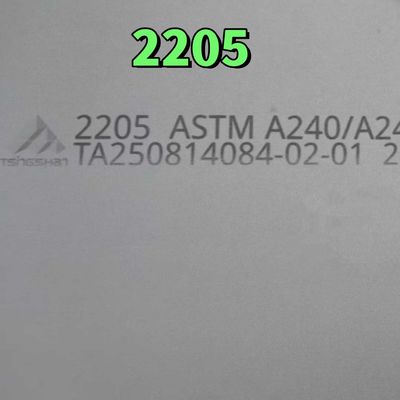

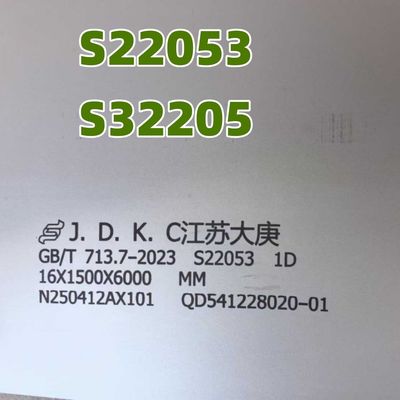

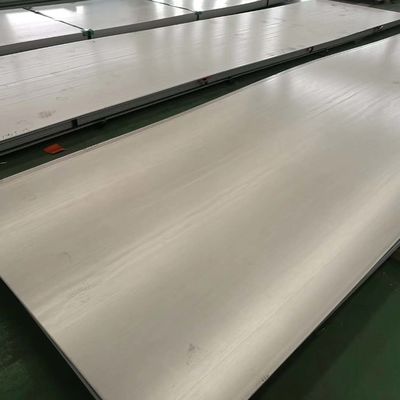

S32205 Duplex Steel Thickness 3-60mm 2000*6000mm Duplex Steel 2205 S31803 Plate
Description:
Duplex & Super Duplex Stainless Steel Plate appeared in the marketplace due to the need to combat the shortcomings of austenitic and ferritic steels. It was found that a mixture of these two materials resulted in higher strength, reduced weight, good weldability and increased resistance to stress corrosion cracking.
Unlike similar steels, duplex also displays an improved resistance to localised corrosion, particularly pitting, crevice corrosion and stress corrosion cracking. Due to its ferritic qualities, duplex steel also shows very good resistance to stress corrosion cracking when compared to standard austenitics. In some cases, the strength of duplex steel can be up to double that of the most commonly used grades of stainless steel.
Another benefit of duplex steels is that because it has a lower nickel and molybdenum content than other austenitic stainless steels, it can prove to be a more cost effective option due to its lower alloy content.
These benefits clearly show why Duplex steels have become popular in applications such as pressure vessels, cooling pipes and storage tanks.
Duplex becomes brittle at extreme temperatures so its use is normally restricted to a maximum temperature of 300 degrees. Duplex also shows signs of embrittlement at –50 degrees.
Advantages:
1. Stronger than 300 series stainless steel which also brings weight advantages
2. High resistance to pitting, crevice corrosion and stress corrosion cracking
3. Higher heat conductivity and lower thermal expansion than austenitic steels
Applications:
1. Pipes for production and transportation of oil and gas
2. Structural and mechanical components
3. Heat exchangers
4. Cooling pipes
Specifications:
| Specifications (ASTM/ASME) Duplex Stainless Steel Plate |
| Alloy |
UNS Designation |
Material
Specification |
Tubing
Specification |
Pipe
Specification |
| 2205 |
S31803/S32205 |
A 240/SA-240 |
A 270 |
A 790/SA-790 |
| |
|
|
A 789/SA-789 |
A928/SA928 |
| Specifications (ASTM/ASME) Super Duplex Stainless Steel Plate |
| Alloy |
UNS Designation |
Minimum Tensile Strength |
Minimum Yield
Strength
0.2% Offset |
Minimum Percent (%)
Elongation in
2 inches (50.8 mm) |
| (psi) |
(MPa) |
(psi) |
(MPa) |
| 2507 |
S32750 |
116,000 |
800 |
80,000 |
550 |
15 |
Chemical Compositions:
| Chemical Composition (%) Duplex Stainless Steel Plate |
| Alloy |
2205 |
2205 |
| UNS Designation |
S31803 |
S32205 |
| Carbon (C) max. |
0.030 |
0.030 |
| Manganese (Mn) max. |
2.00 |
2.00 |
| Phosphorus (P) max. |
0.030 |
0.030 |
| Sulfur (S) max. |
0.020 |
0.020 |
| Silicon (Si) max. |
1.00 |
1.00 |
| Chromium (Cr) |
21.0 - 23.0 |
22.0 - 23.0 |
| Nickel (Ni) |
4.5 - 6.5 |
4.5 - 6.5 |
| Molybdenum (Mo) |
2.5 - 3.5 |
3.0 - 3.5 |
| Nitrogen (N) |
0.08 - 0.20 |
0.14 - 0.20 |
| Iron (Fe) |
Balance |
Balance |
| Chemical Composition (%) Super Duplex Stainless Steel Plate |
| Alloy |
2507 |
| UNS Designation |
S32750 |
| Carbon (C) max. |
0.030 |
| Manganese (Mn) max. |
1.20 |
| Phosphorus (P) max. |
0.035 |
| Sulfur (S) max. |
0.020 |
| Silicon (Si) max. |
0.80 |
| Chromium (Cr) |
24.0 - 26.0 |
| Nickel (Ni) |
6.0 - 8.0 |
| Molybdenum (Mo) |
3.0 - 5.0 |
| Nitrogen (N) |
0.24 - 0.32 |
| Copper (Cu) max. |
0.50 |
| Iron (Fe) |
Balance |
Mechanical Property:
| Typical Physical & Mechanical Properties - Annealed Condition (Room Temperature) |
| Duplex Stainless Steel Plate |
| Alloy |
UNS Designation |
Minimum Tensile Strength |
Minimum Yield
Strength
0.2% Offset |
Minimum Percent (%)
Elongation in
2 inches (50.8 mm) |
| (psi) |
(MPa) |
(psi) |
(MPa) |
| 2205 |
S31803 |
90,000 |
620 |
65,000 |
450 |
25 |
| 2205 |
S322051 |
95,000 |
655 |
70,000 |
485 |
25 |
| 2205 |
S322052 |
95,000 |
655 |
65,000 |
450 |
25 |
| Super Duplex Stainless Steel Plate |
| Alloy |
UNS Designation |
Minimum Tensile Strength |
Minimum Yield
Strength
0.2% Offset |
Minimum Percent (%)
Elongation in
2 inches (50.8 mm) |
| (psi) |
(MPa) |
(psi) |
(MPa) |
| 2507 |
S32750 |
116,000 |
800 |
80,000 |
550 |
15 |
FAQ
Q: Are you manufacturer? Can we visit your factory ?
A: Yes , we are a source steel factory in Wuxi,China. Welcome to visit.
Q. What are your main products ?
A: Main products are stainless steel, aluminum and copper for sheets, coils, pipes, bars.
Q: How do you control the quality?
A: Complete incoming material testing and production testing process to ensure that the quality of products can meet customer requirements. We also support the third party inspection before shipping.
Q: Can you arrange the shipment?
A: Sure, we have long-term cooperation with the freight forwarder, so we can get more favorable prices.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the raw materials are in stock. Or it is 10-15 days if the goods are not in stock. It depends.
Q: Can we get the a free sample?
A: Yes. As long as we have it in stock.
