পণ্যের বিবরণ:
|
| সাক্ষ্যদান: | CE, ISO, BV, SGS | Stock: | always in good stock |
|---|---|---|---|
| Commodity: | Stainless Steel Angle Bar | Thickness: | 1mm-15mm |
| Length: | 1000mm-6000mm | Standard: | ASTM, AISI, JIS, DIN, EN, GB |
| Type: | Angle | Application: | chemical, shipping |
| Special Use: | Valve Steels | ||
| লক্ষণীয় করা: | SS angle bar,equal angle bar |
||

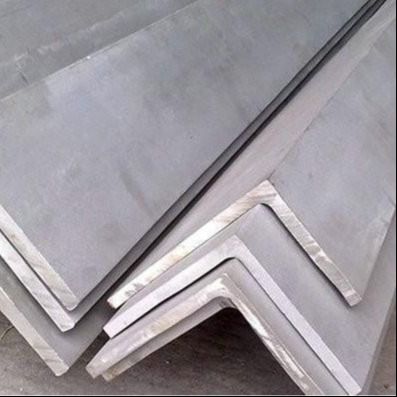

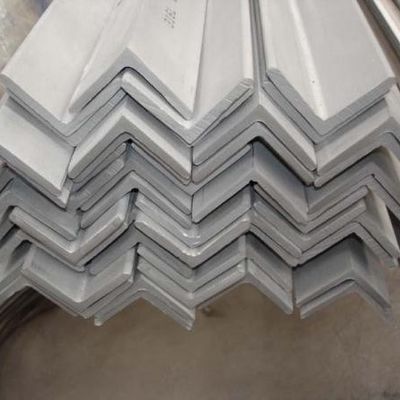

SUS/AISI/ASTM 304 Stainless Steel Angle Bar
Products(free samples are avaiable)
1) Grade: 200 series, 300 series, 400 series Stainless Steel Angle Bar
2) Standard: AISI, ASTM, DIN, GB, JIS, SUS
3) Specification:2.5#---20#
4) Length: 6 meters or as required
5)Technique: Hot rolled/annealed/pickled
6) Certification: ISO9001: 2008 / SGS
7) Application: widely used in chemical, shipping, architecture, machine-made, household products industry, etc. SUS/AISI/ASTM
8) Delivery: Within 30 days upon receipt of 30% deposit
9) Payment: T/T or L/C at sight
10) Trade Terms: FOB/CIF/C&F
Chemical Elements of SUS/AISI/ASTM 304 Stainless Steel Angle Bar
| Material | C %(≤) | Mn % (≤) | P % (≤) | S % (≤) | Si % (≤) | Cr% (≤) | Ni% (≤) | Mo% |
| 304L | 0.03 | 2 | 0.045 | 0.03 | 1 | 18.00-20.00 | 8.00-12.00 | - |
Tolerance of Different Grades of SUS/AISI/ASTM 304 Stainless Steel Angle Bar
| Grade | Specification | Side Allowble Deviation | Thickness | |||||||||
| 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |||
| Tickness Allowble Deviation | ||||||||||||
| 2.5# | 25×25 | ±1.5 | ±0.5 | ±0.5 | ±0.5 | / | / | / | / | / | / | / |
| 3# | 30×30 | ±2.0 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | / | / | / | / | / | / |
| 4# | 40×40 | ±2.0 | ±0.6 | ±0.6 | ±0.6 | ±0.6 | ±0.6 | / | / | / | / | / |
| 5# | 50×50 | ±2.0 | ±0.6 | ±0.6 | ±0.6 | ±0.6 | ±0.6 | / | / | / | / | / |
| 6# | 60×60 | ±3.0 | / | ±0.6 | ±0.6 | ±0.6 | ±0.6 | ±0.6 | / | / | / | / |
| 6.5# | 65×65 | ±3.0 | / | / | ±0.6 | ±0.6 | ±0.7 | ±0.7 | ±0.7 | / | / | / |
| 7# | 70×70 | ±3.0 | / | / | ±0.7 | ±0.7 | ±0.7 | ±0.7 | ±0.7 | ±0.7 | / | / |
| 7.5# | 75×75 | ±3.0 | / | / | / | ±0.7 | ±0.7 | ±0.7 | ±0.7 | ±0.7 | / | / |
| 8# | 80×80 | ±3.0 | / | / | / | ±0.7 | ±0.7 | ±0.7 | ±0.7 | ±0.7 | / | / |
| 9# | 90×90 | ±3.0 | / | / | / | / | ±0.7 | ±0.7 | ±0.7 | ±0.8 | ±0.8 | ±0.8 |
| 10# | 100×100 | ±4.0 | / | / | / | / | ±0.7 | ±0.7 | ±0.7 | ±0.8 | ±0.8 | ±0.8 |
Packaging
| Packing details | 800 Ton/Tons per Day Export standard package :bundled wooden box or be required Port:shanghai |
| Delivery Time | 15 working days |
| Payment Terms | L/C ,T/T , western union , paypal , alipay |
| Shipping | DHL , UPS , FEDEX , TNT , EMS , by air , by sea , China post , any way you think is suitable |
Chemical Composition
| Material | C | Si | Mn | P | S | Cr | Ni |
| 201 | ≤0.12 | ≤0.75 | 9.5-12.5 | ≤0.045 | ≤0.03 | 13-16 | 0.8-1.5 |
| 304 | ≤0.08 | ≤0.75 | ≤2.0 | ≤0.045 | ≤0.03 | 18-19 | 8-10 |
| 316 | ≤0.08 | ≤1.00 | ≤2.0 | ≤0.035 | ≤0.03 | 10-14 | 16.0-18.5 |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 16-18 | 10-14 |
| 430 | ≤0.12 | ≤0.75 | ≤2.0 | ≤0.04 | ≤0.03 | 16-18 | ≤0.6 |
Features
Terms:
1) Loading Port: Shanghai
2) Delivery term: FOB,CFR, CIF
3) Delivery lead time: 15 working days after received deposit.
4) Payment term:30% by T/T as deposit., balance will be paid by T/T ,
5) Quality assurance: Mill Test Certificate is supplied with shipment, third Party Inspection is acceptable
