S31803/S32205 Duplex Stainless Steel Plate DIN 1.4462 Duplex Steel Laser Cutting

চীন S31803/S32205 Duplex Stainless Steel Plate DIN 1.4462  Duplex Steel Laser Cutting সরবরাহকারী

বড় ইমেজ :  S31803/S32205 Duplex Stainless Steel Plate DIN 1.4462 Duplex Steel Laser Cutting

পণ্যের বিবরণ:

Place of Origin: Shanxi
: Tisco
: ISO9001
Model Number: S32205/S31803

প্রদান:

Minimum Order Quantity: 1 ton
: USD3800-4000/T
Packaging Details: Standard seaworthy package(wooden boxes package,pvc package, and other package duplex stainless steel plate
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 2000T/month
বিস্তারিত পণ্যের বর্ণনা
Material: stainless steel plate : ISO
Type: plate Special Use: High-strength Steel Plate
: Tisco

S31803/S32205 Duplex Stainless Steel Plate DIN 1.4462 Duplex Steel Laser Cutting

1. Steel Grade: ASTM A240 2205/ S32205
2. Product name: ASTM A240 2205/ S32205/ Stainless Steel Plate
3.Size: thickness: 2-300mm
width: 1000-3000mm
length: 3000-12000mm or as required
4.Heat Treatment: as required
5.Standard: ASTM,GB,JIS,DIN,BS





For more information of ASTM A240 2205 stainless steel plates, please check them in following:

ASTM A240 2205 Chemical Composition
Grade The Element Max (%)
C Mn P S Si Cr Ni
ASTM A240 2205 0.03 2.00 0.030 0.020 1.0 22-23 4.5-6.5
Mo N Ti Cb
3-3.5 0.14-0.20 - 0.8



ASTM A240 2205 Mechanical Property
Grade
Yield Tensile Elongation Hardness, max
ASTM A240 2205 Min Mpa Mpa Min % Brinell Rockwell B
450 655 25% 293 -
Item S32205 stainless steel
Standard ASTM A240,GB/T3280-2007,JIS4304-2005,ASTM A167,EN10088-2-2005,etc
Material

316N,N08904,310S,309S,316,316L,316Ti,317,317L,317LMN,317LN,321,321H,347,

347H,304,304L,301,302,201,202,

410,420,430,0Cr25Ni20,0Cr23Ni13,0Cr17Ni12Mo2,0Cr18Ni12Mo3Ti,0Cr19NI13Mo3,

0Cr18Ni9Ti,0Cr18Ni11Nb,0Cr18Ni9,0Cr19Ni10,1Cr17Ni7,1Cr13,2Cr13,3Cr13,1Cr17,

EN1.4372,EN1.4373,EN1.4319,EN1.4301,EN1.4306,EN1.4315,EN1.4303,EN1.4833,

EN1.4845,EN1.4401,EN1.4571,EN1.4404,EN1.4429,EN1.4438,EN1.4541,EN1.455,

EN1.4477,EN1.4462,EN1.4402,EN1.4016,EN1.4113,etc

Surface 2B,BA,NO.1,NO.4,NO.8,8K,mirror,etc
Thickness 0.1mm-120mm
Width 20mm-2500mm
Length 2000mm-8000mm; at your request
Application

a) General service industries (petroleum, food, chemical,paper, fertilizer, fabric,

aviation and nuclear)
b) Fluid, gas and oil transport
c) Pressure and heat transmission
d) Construction and ornament
e) Boiler heat exchangers



Chemical Composition C ≤ 0.030, Si ≤ 1.00,Mn ≤ 2.50,P≤0.040,S≤0.030, Cr 21.5~24.5, Ni 3.0~5.5, Mo 0.05~0.60 ,N 0.05~0.20 Cu 0.05~0.60
Package

Export standard package: bundled wooden box or be required;
The inner size of container is below:
(1)20footGP:5.8m(length)x2.13m(width)x2.18m(high)about 24-26 CBM
(2)40footGP:11.8m(length)x2.13m(width)x2.72m(high)about 68 CBM





Product details

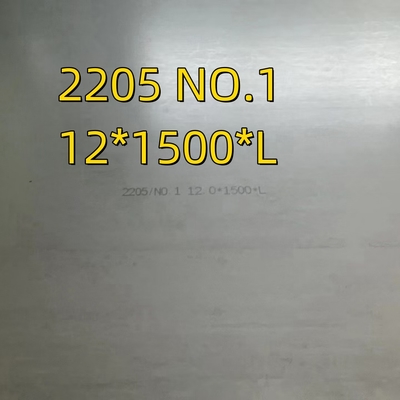

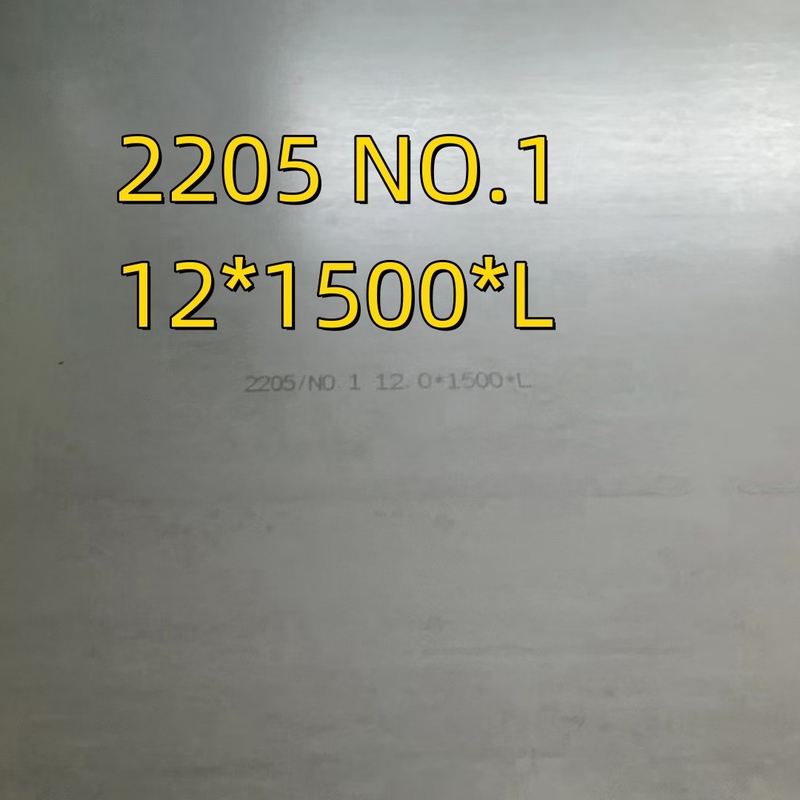

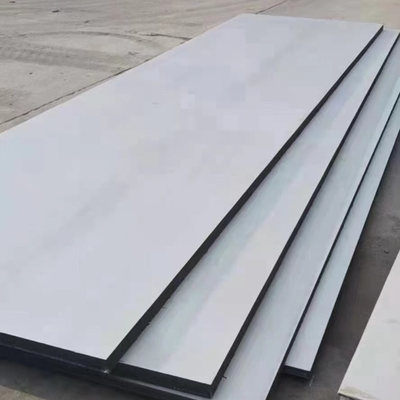

S31803/S32205 Duplex Stainless Steel Plate DIN 1.4462  Duplex Steel Laser Cutting



Packing&Shipping

Standard seaworthy package(wooden boxes package,pvc package, and other package duplex stainless steel plate



S31803/S32205 Duplex Stainless Steel Plate DIN 1.4462  Duplex Steel Laser CuttingS31803/S32205 Duplex Stainless Steel Plate DIN 1.4462  Duplex Steel Laser CuttingS31803/S32205 Duplex Stainless Steel Plate DIN 1.4462  Duplex Steel Laser Cutting
